G I hexagonal wire mesh from China manufacturer - Dingzhou Huihuang Hardware Products Co., Ltd.,

Price:	0.3~0.5 USD
Payment Terms:	T/T,L/C
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HH-c1

Production Capacity: 1000000square meter /day

Delivery Date: 15days

Mesh size 1/2,3/4,1 inch: Characteristic good corros...

Means of Transport: Ocean

Packing: with waterproof paper

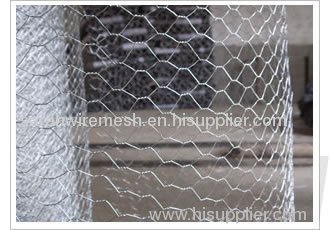

Hexagonal wire mesh: Wire Diameter 0.45mm-3.8mm

Chicken Wire Mesh:
Hole shape:hexagonal
Wire Dia:BWG27-16
Mesh size:1/2,3/4,1 inch
Material:galvanized,PVC coated wire

It is also called (Chicken/Rabbit/Poultry Net) is made of high quality low carton steel wire or stainless steel wire etc, the mesh is firm in structure and has flat surface. As our MOST leading goods, it could make in different varieties .

Assortment:
Electro galvanized after weaving
Electro galvanized before weaving
Hot dipped galvanized after weaving
Hot dipped galvanized before weaving
Pvc Coated hexagonal wire netting
Galvanized Drawn Iron Wire
Stainless steel hexagonal wire netting

Weaving and feature: The above products could weave in continuous twist or reverse twist with extension wires. It has fine features of durable& strongly rust-resistant and fine anti-corrosiveness.

Application : it used wide in building, oil, chemical industry, breed, plant protection , food processing' reinforce guard and heat preservation , for example: make net cast ,stone cage ,insulated net wall ,boiler cover ,poultry fence etc.

Galvanized Hexagonal Wire Netting

Opening			Wire Gauge		Width Per Roll
Inch	mm	Tolerance	BWG	MM	Feet	Min. Galv.G/SQ.M
3/8"	10	+0.5	BWG 27-23	0.41-0.64mm	2' - 1M	0.7mm - 145
1/2"	13	-1.5	BWG 27-21	0.41-0.81mm	2' - 2M	0.7mm - 95
5/8"	16	+1.0/-2.0	BWG 27-20	0.41-0.91mm	2' - 2M	0.7mm - 70
3/4"	19	+1.0/-2.5	BWG 26-20	0.46-0.91mm	2' - 2M	0.7mm - 55
1"	25	+1.5	BWG 25-18	0.51-1.20mm	1' - 2M	0.9mm - 55
1.25"	31	-3.0	BWG 24-18	0.56-1.20mm	1' - 2M	0.9mm - 40
1.5"	40	+2.0/-4.0	BWG 23-18	0.61-1.20mm	1' - 2M	1.0mm - 45
2"	51	+2.0/-4.0	BWG 23-18	0.61-1.20mm	1' - 2M	1.2mm - 40
3"	76	+2.0/-4.0	BWG 20-17	0.91-1.40mm	2' - 2M	1.4mm - 30
4"	100	+2.0/-4.0	BWG 19-16	1.00-1.60mm	2' - 2M	1.6mm - 30
Special sizes are available upon request..

Remarks:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

PVC Coated Hexagonal Wire Netting

Mesh		Wire Gauge (MM)	Width
Inch	MM
1/2"	13mm	0.6mm - 1.0mm	2' - 2M
3/4"	19mm	0.6mm - 1.0mm	2' - 2M
1"	25mm	0.7mm - 1.3mm	1' - 2M
1-1/4"	30mm	0.85mm - 1.3mm	1' - 2M
1-1/2"	40mm	0.85mm - 1.4mm	1' - 2M
2"	50mm	1.0mm - 1.4mm	1' - 2M

Remarks:
a. The thickness of PVC Coating is usually 0.2-0.4mm, others may arranged as per buyers' request;
b. Special sizes are available upon request..
c. Package: Normally each roll packed in water proof paper,then Shrink wrapped,or Plastic film only, carton, on pallet etc.
